SPECIFICATIONS

Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station

Brand Name: PowMr

Certification: CE

Charging Technology: MPPT

Feature 1: MPPT Solar Controller

Feature 2: 60A MPPT Solar Charge

Feature 3: MPPT 60A Solar Controller

Hign-concerned Chemical: None

Max. Solar Array Open-Circuit Voltage: 160V

Model Number: HHJ60-PRO

Origin: Mainland China

System Voltage: 12V/24V/36V/48V

is_customized: Yes

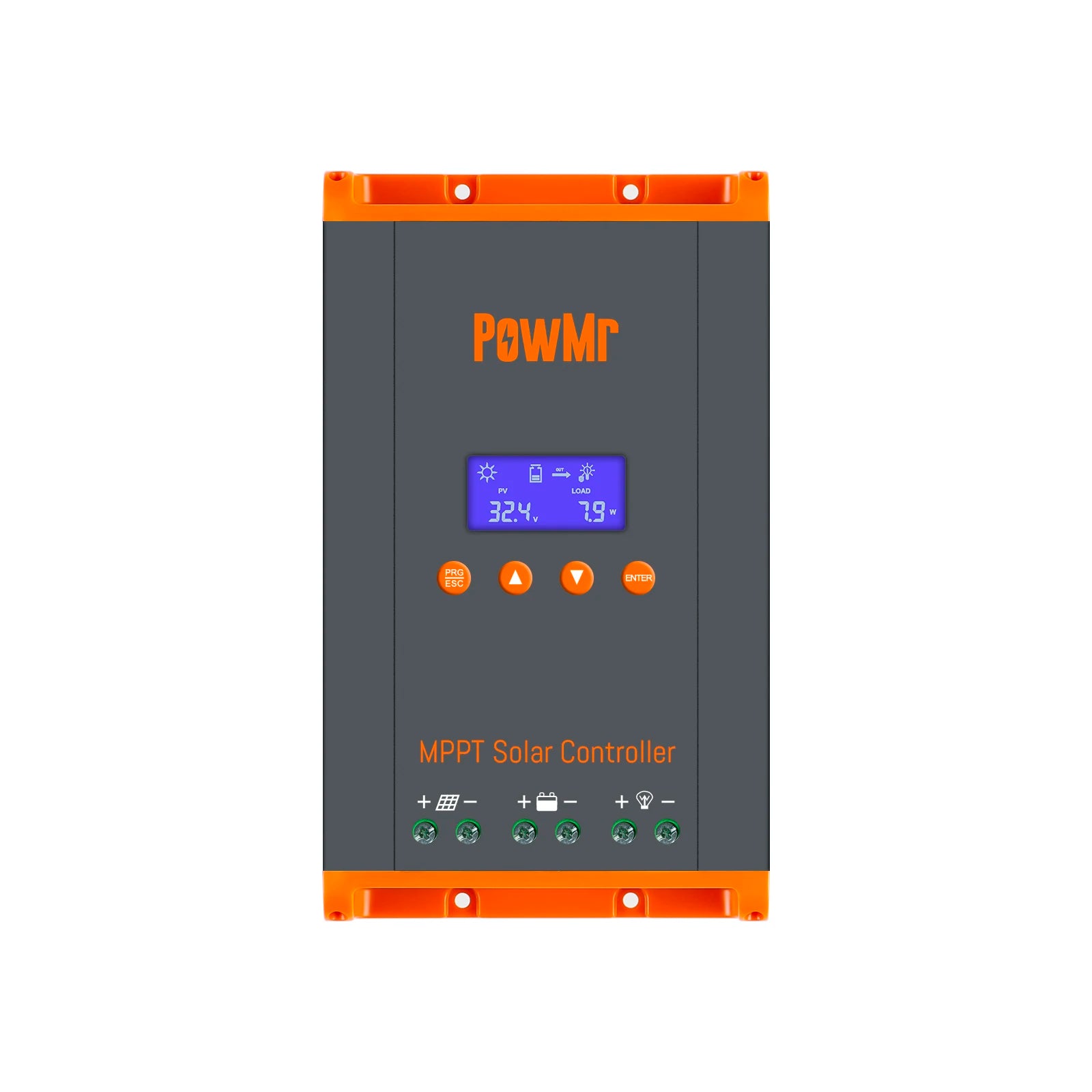

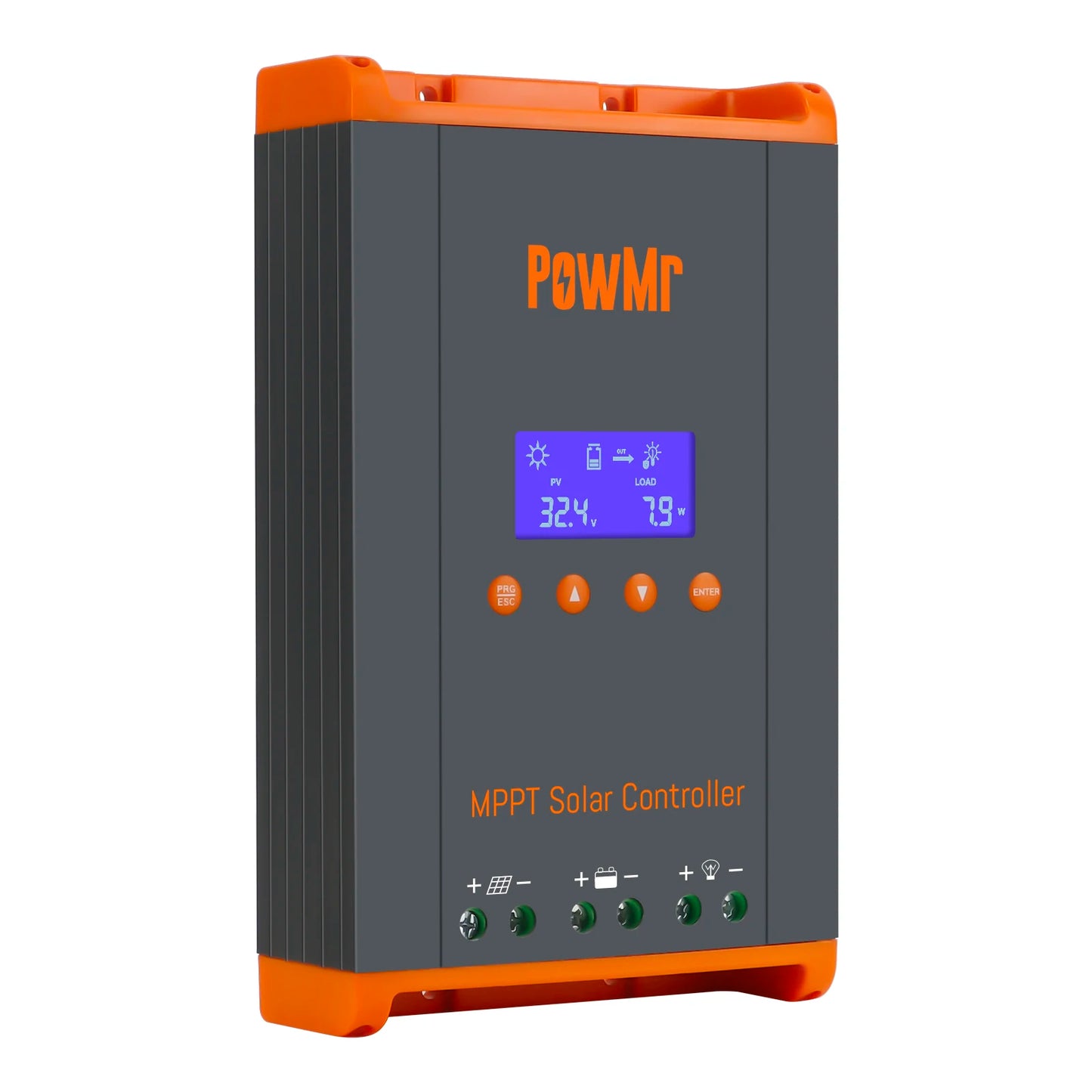

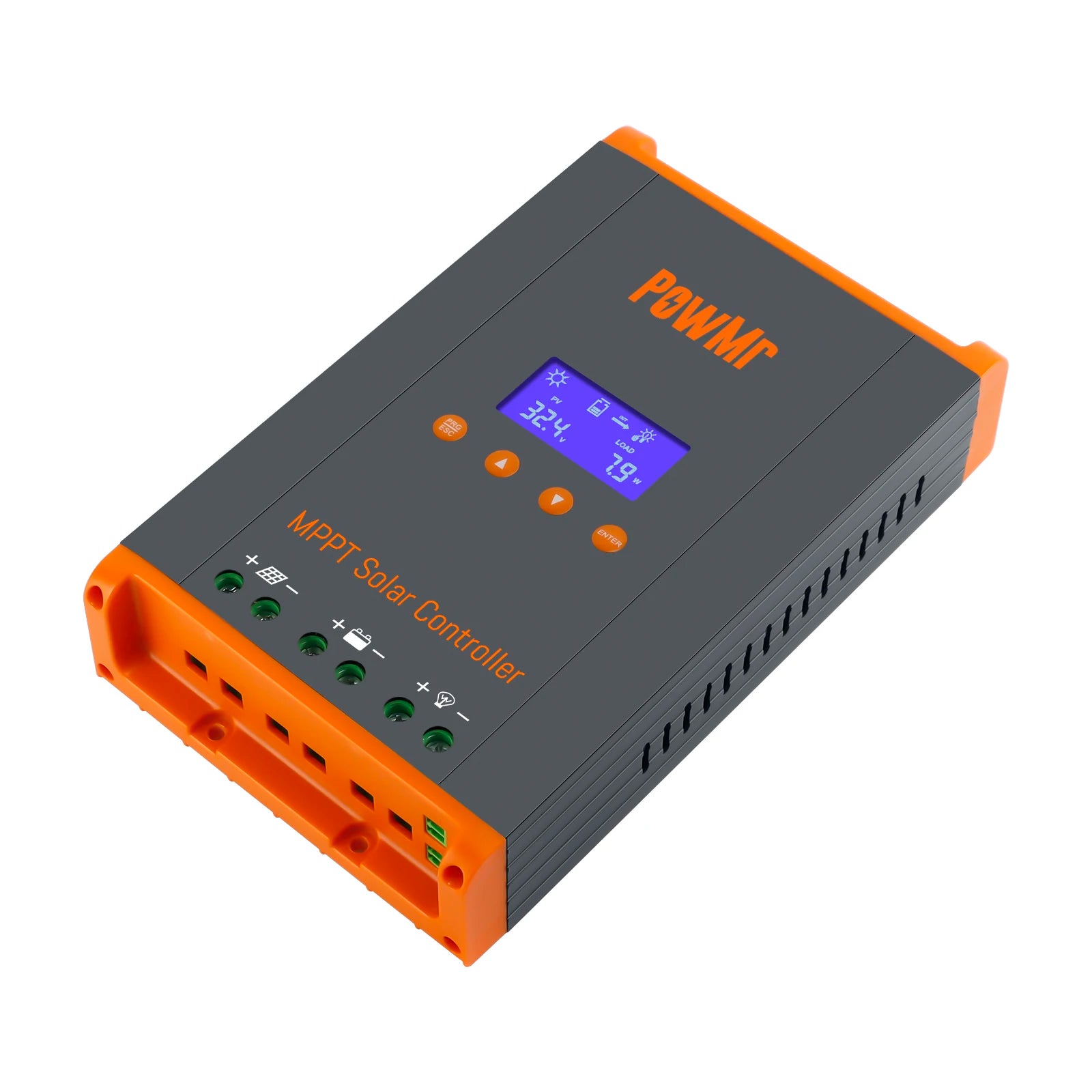

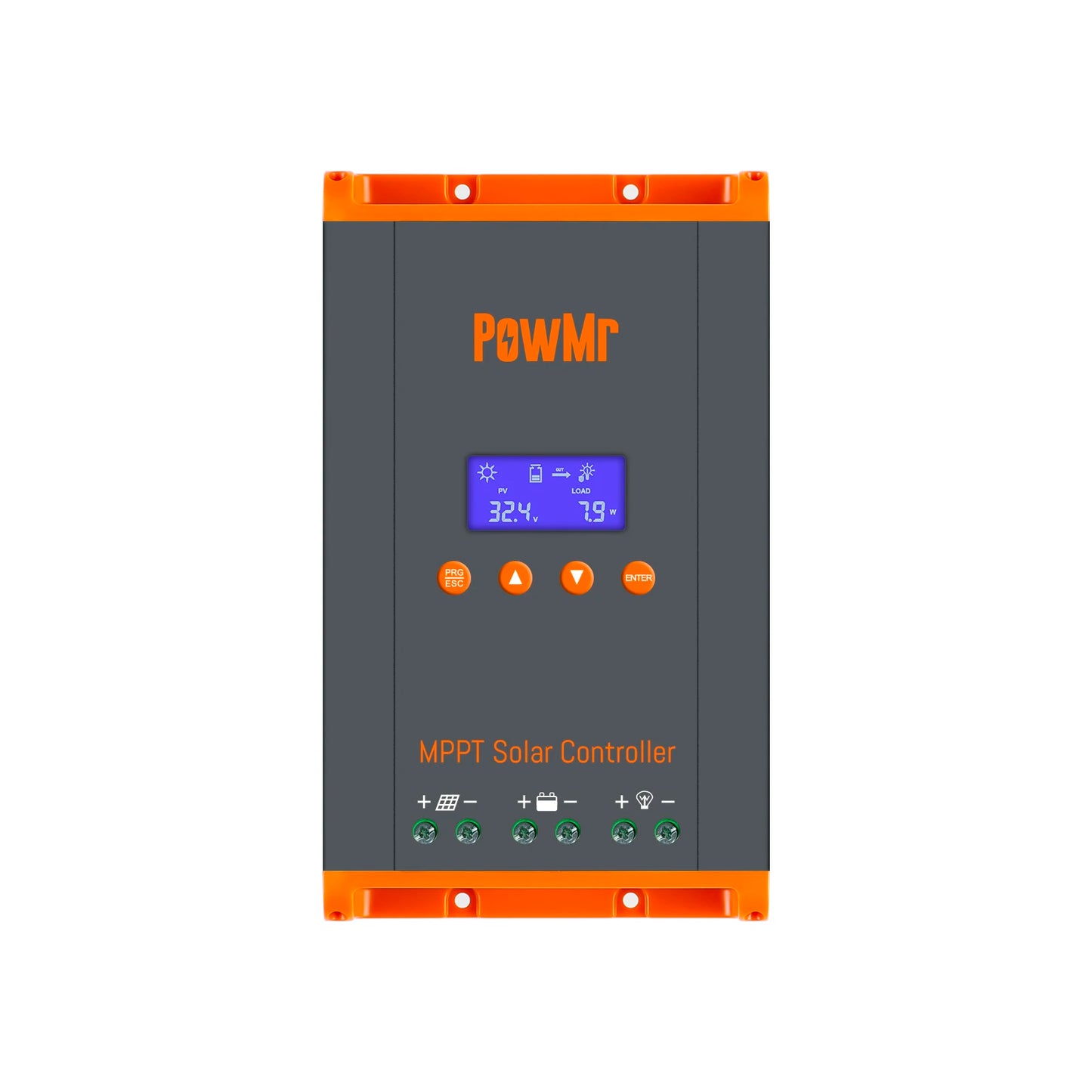

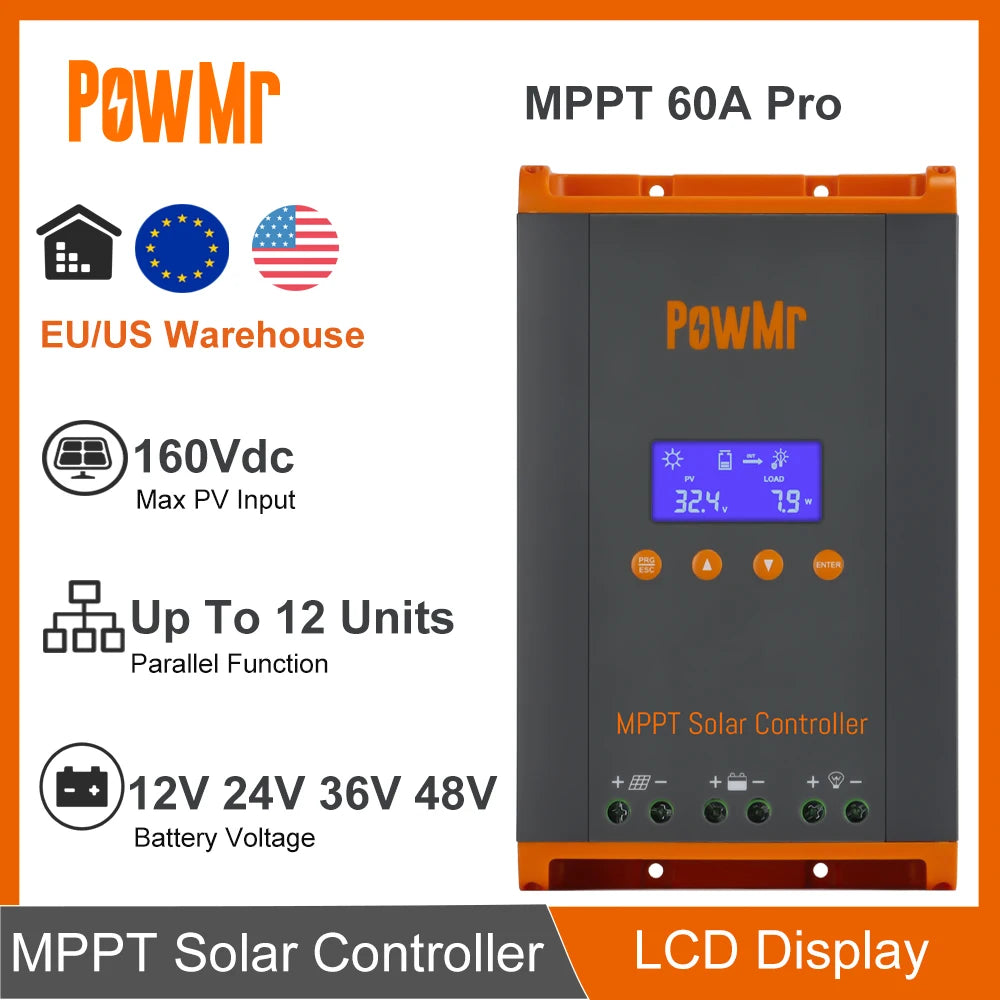

PowMr New 60A MPPT Solar Charge Controller 12V/24V/36V/48V LCD Dispaly Max Solar Panel PV 160V Support Parallel and Max 12 Units

Introduction

Product Features

Software Update MPPT Design 100% MPPT 60A solar charge controller Intelligent, Max efficiency ≥98.1%, PV utilization ≥99%. Built-in DSP controller with high performance Automatic battery voltage detection 12V/24V/36V/48V, Make sure batteries' voltage more than 12V to boost controller and make sure battery has enough power to Self-detection when connected to the controller

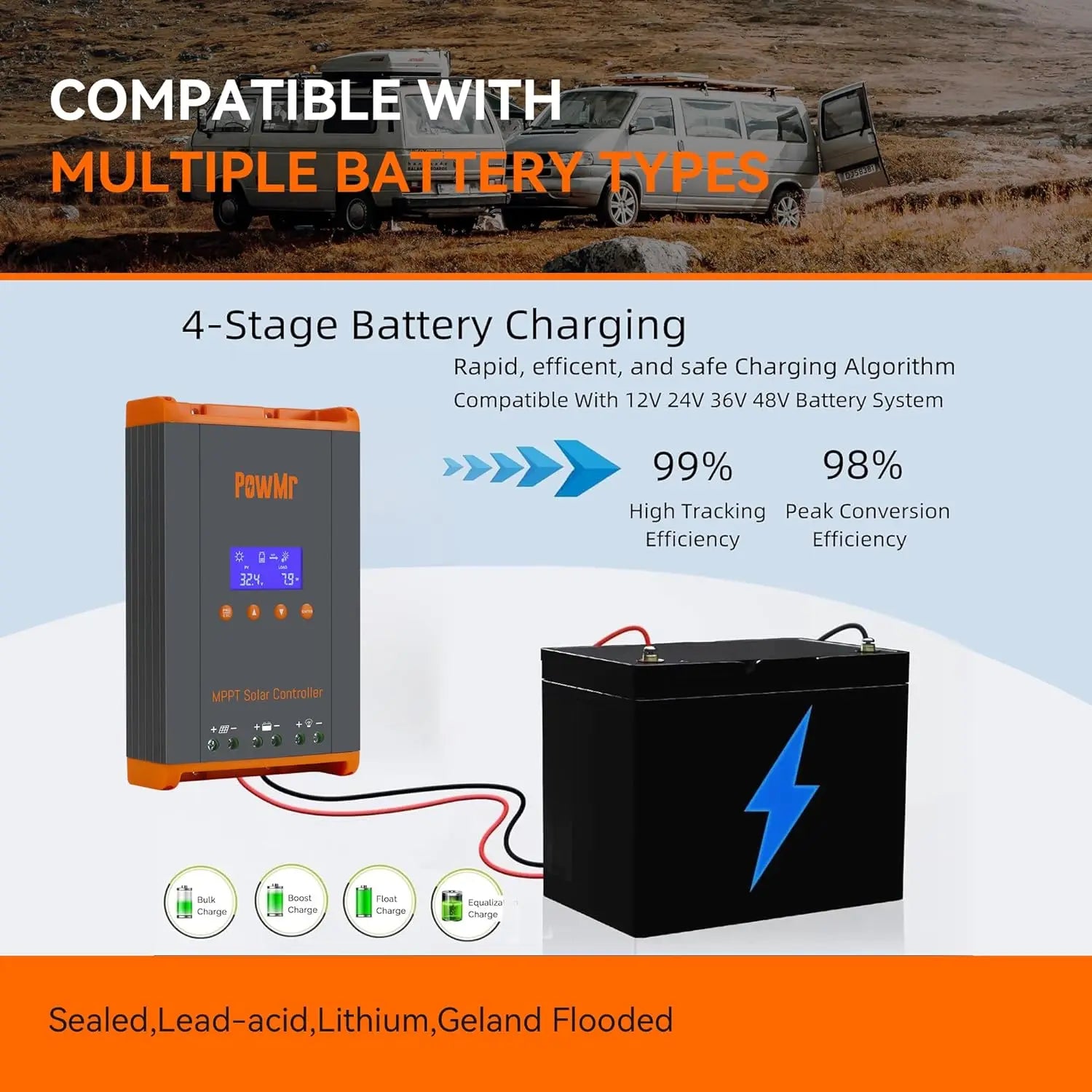

Multiple Battery Adaptation Fit for USER(can be set Lithium, Lifepo4, Li(NiCoMn)O2)/Vented/Flooded/Sealed/Gel/NiCd battery. User programmable for absorption voltage/Floating voltage/Low voltage disconnect./Load Timer. Real-time energy recording. Two connectors for each pos and negs on solar and batteries connectors. copper wires:9AWG

Full System Protection Backlight LCD Dispaly PV voltage/output power/Battery voltage/charging current/working mode/Temperature. ☀ TROUBLESHOOTING function and LCD display and can help users not only check the whole system operating data and statuses but also quickly identify system faults and modify parameters

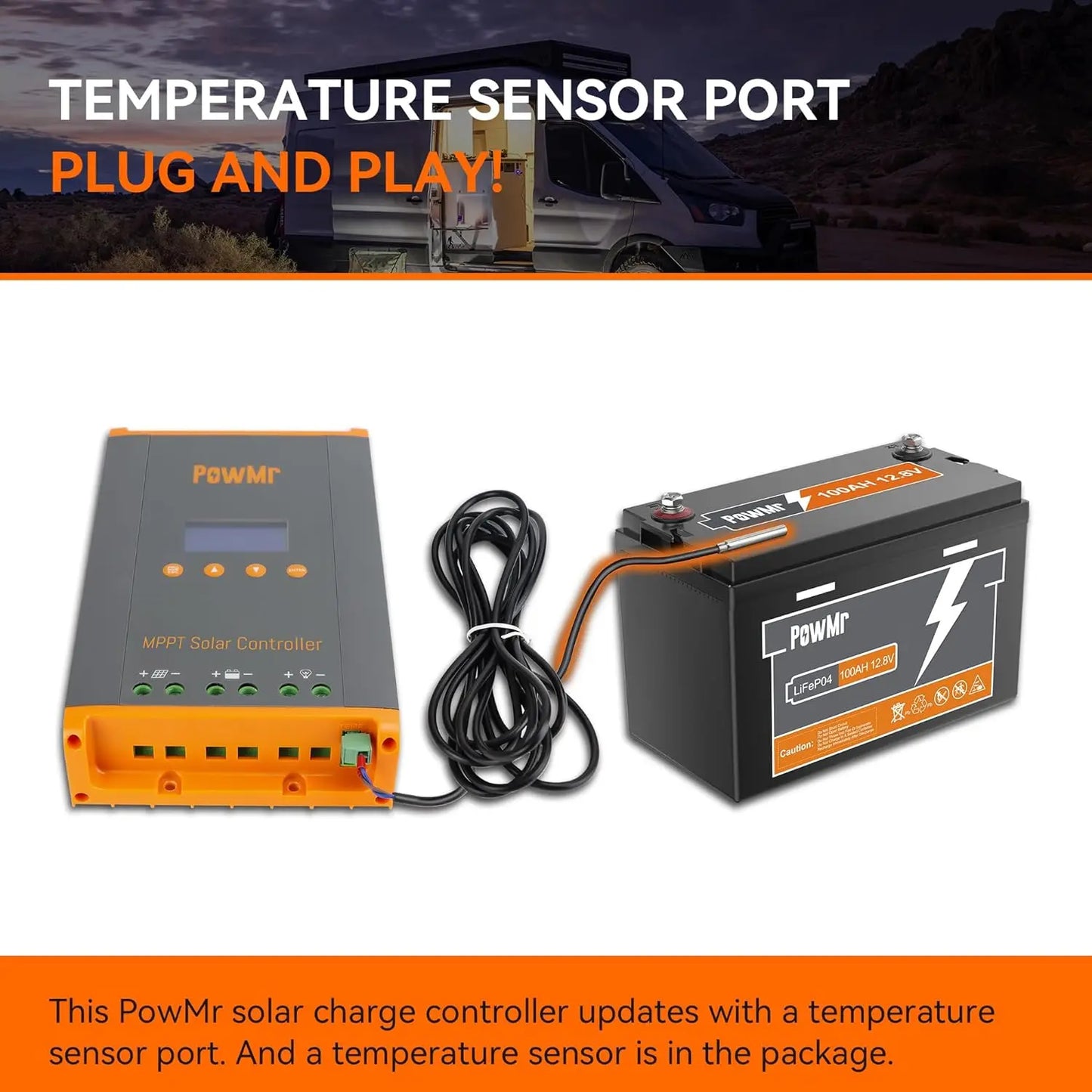

Plug and Play Temperature Sensor This PowMr solar charge controller updates with a temperature sensor port. And a temperature sensor is in the package. Installing this is a breeze. Plug and play!

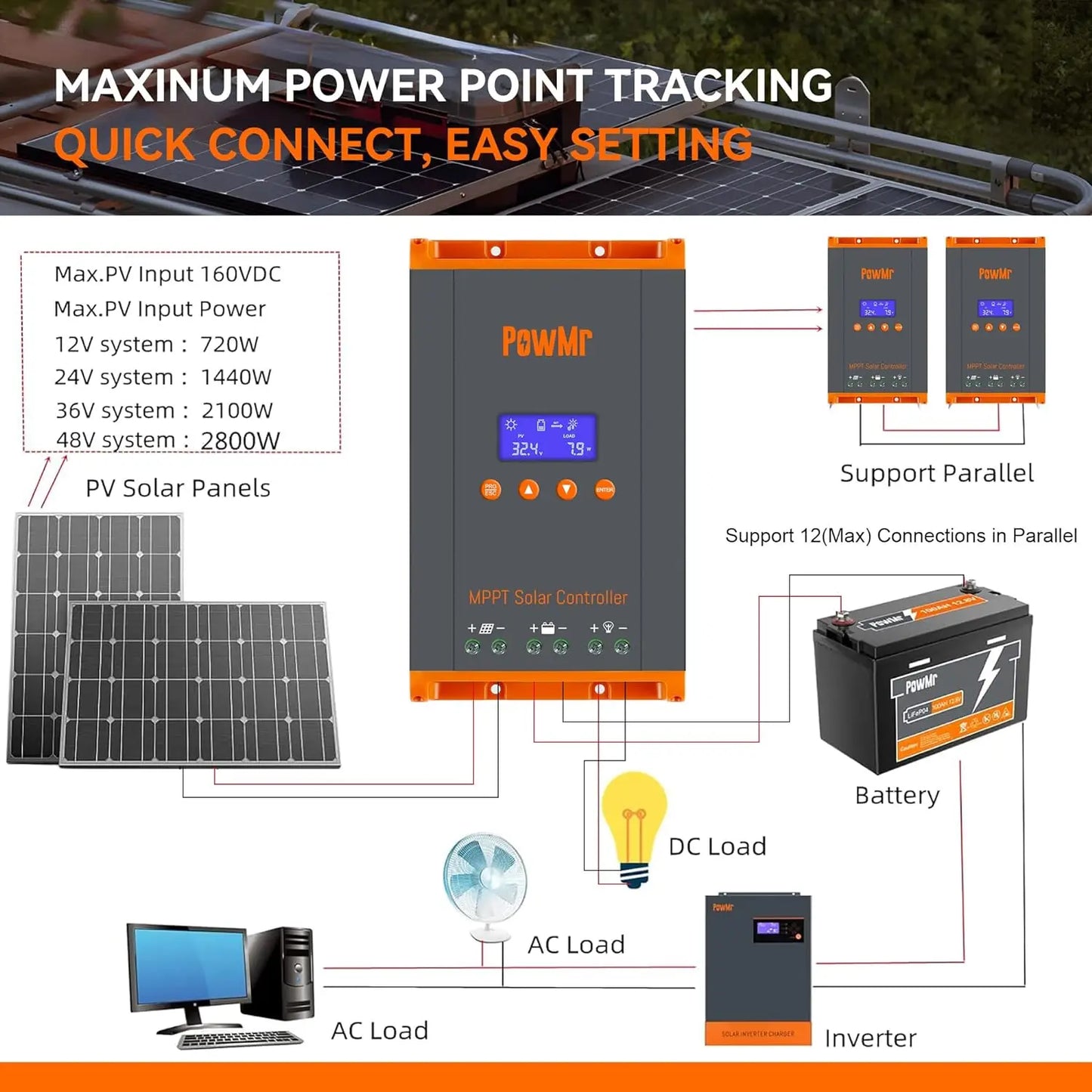

Supports Up to 12 Units in Parallel

The parallel operation function allows for easy expansion of the solar panel configuration and
energy storage capacity limits, thus increasing the scale of energy storage. For detailed parallel
operation guidelines, refer to Section 7.

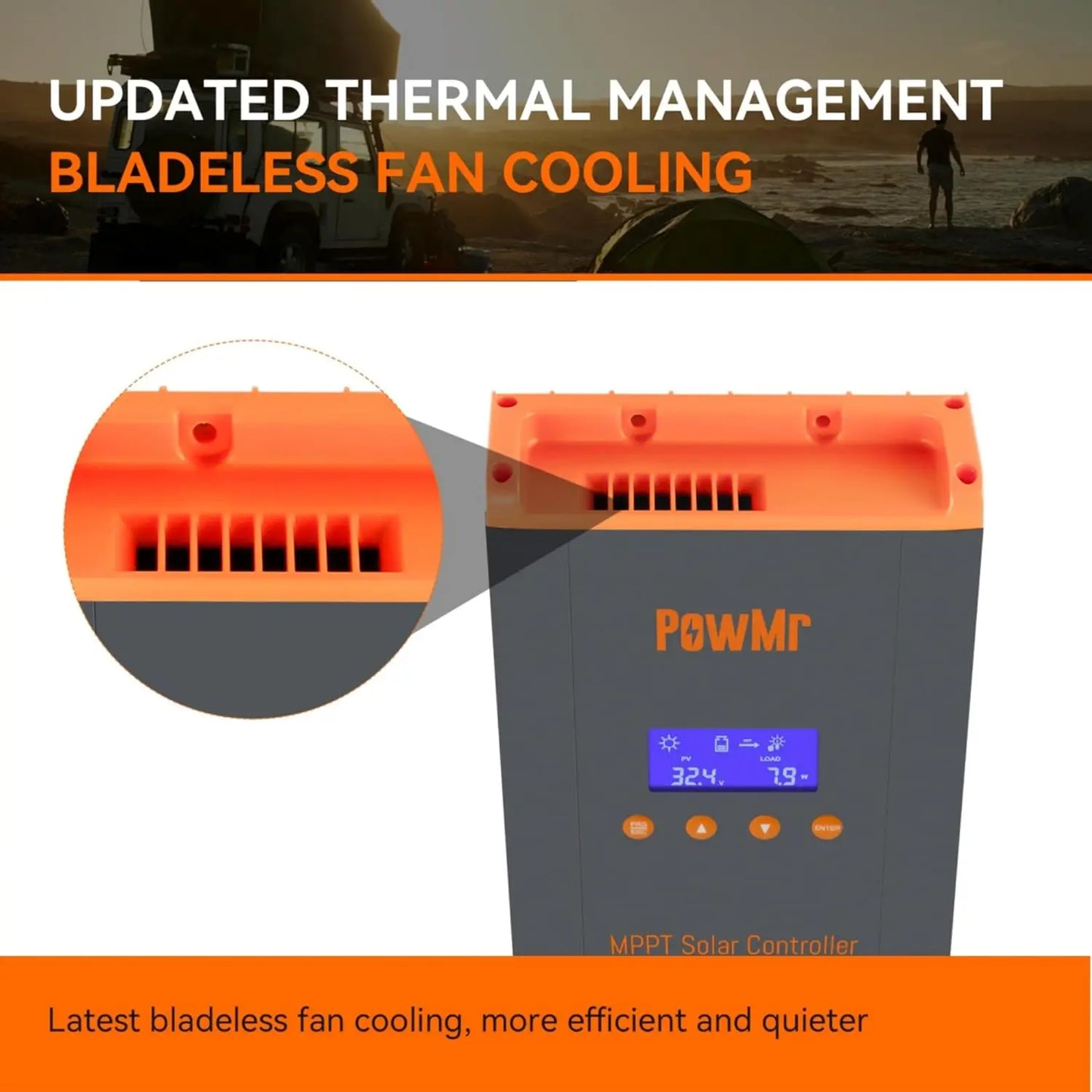

Forced Air Cooling

Built-in cooling fan for forced heat dissipation, improving overall device operational efficiency.

Lithium Battery Activation

Compatible with lithium batteries. When the battery type parameter is set to lithium batteries, the
charging cycle will be adjusted to accommodate the needs of lithium battery charging. Additionally,
when connected lithium batteries are in a protected state, the controller will activate the lithium
batteries with the energy from the solar panels, with current not exceeding the lithium battery
protection voltage and current range.

Product Specification
