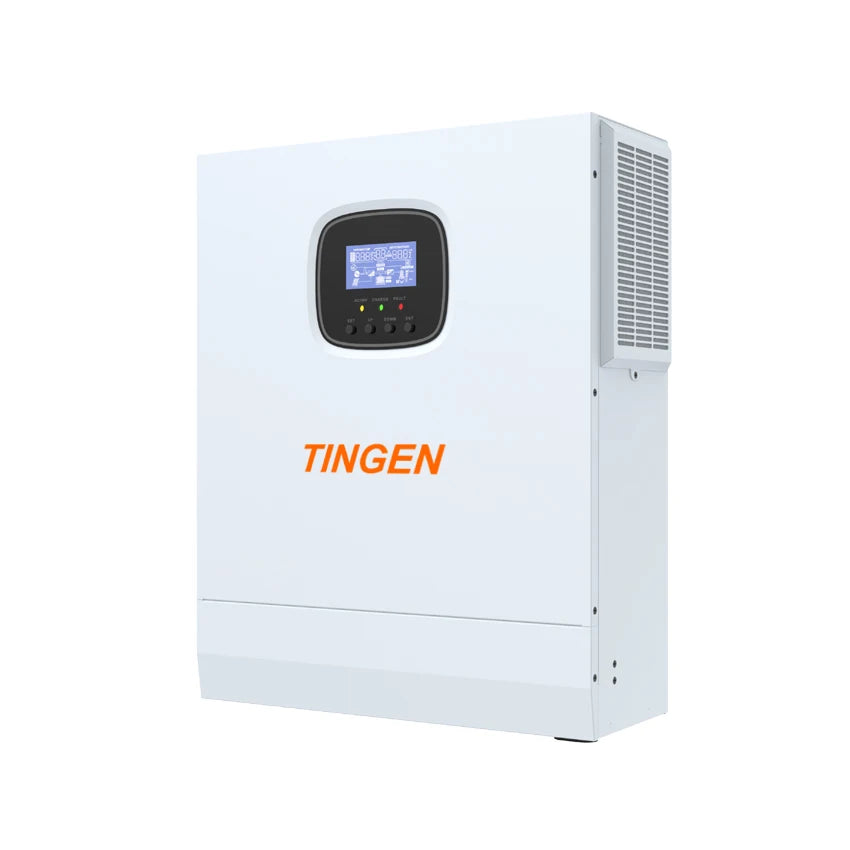

5000W Hybrid Inverter Battery Voltage 48V Built in 80A MPPT Solar Voltage 110V/120V
5000W Hybrid Inverter Battery Voltage 48V Built in 80A MPPT Solar Voltage 110V/120V
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: TINGEN
Hign-concerned Chemical: None
Origin: Mainland China
Off Grid Inverter 5KW 5000W 48V MPPT Solar Inverter Hybrid Single Phase DC 48v to AC 110V 120V 220V Inversor HSI5000U HSI5500
Features：

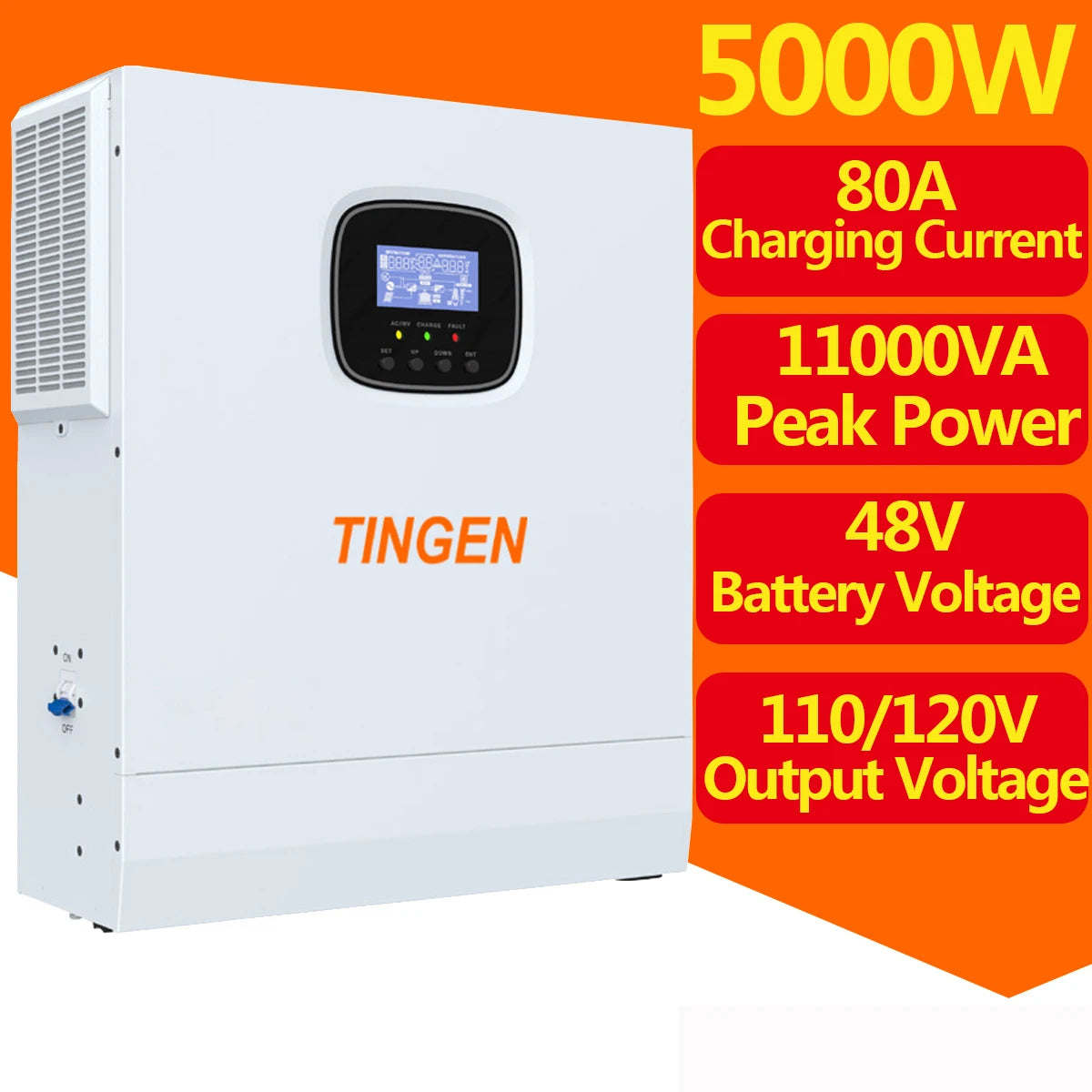

1.Rated power 5000W/5500W,48VDC
2.MPPT PV ranges120V~450V dc, max. 500V Voc input
3.Maximum PV ChargeCurrent 80A
4.High frequency inverter with small size and light weight
5.Pure sine wave AC output

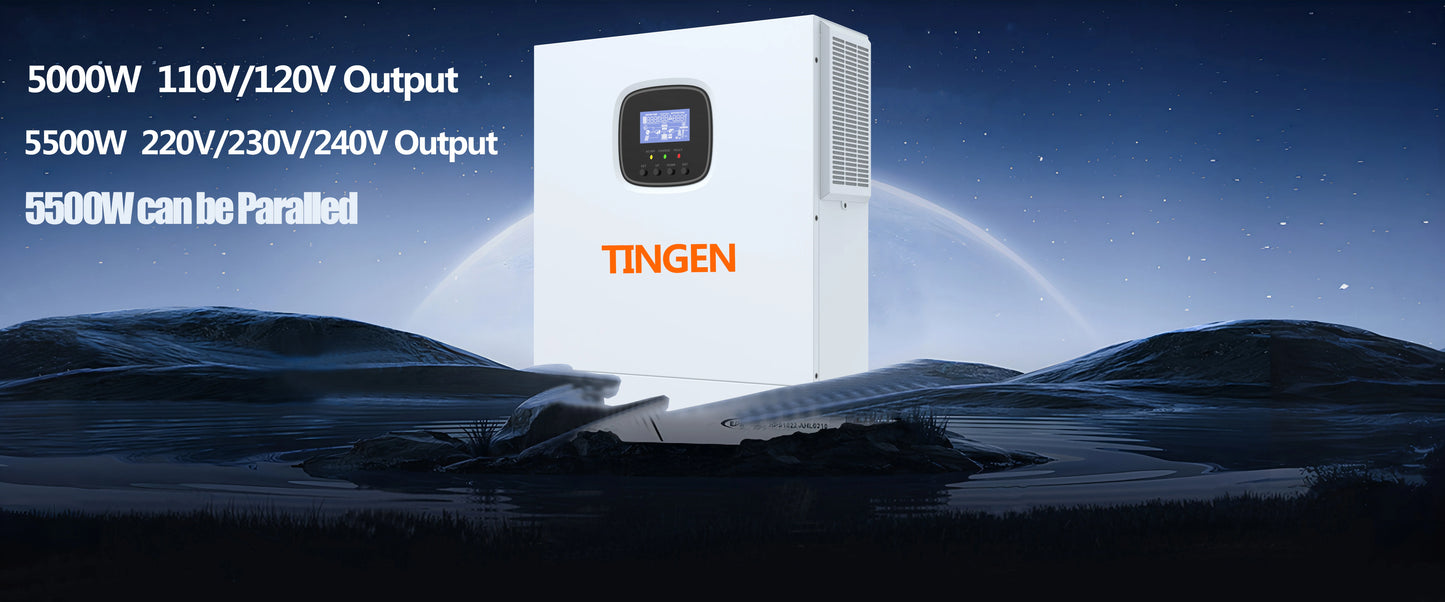

6.American standard110V/120V (5000W) OrEuropean standard220V/230V AC output (5500W)

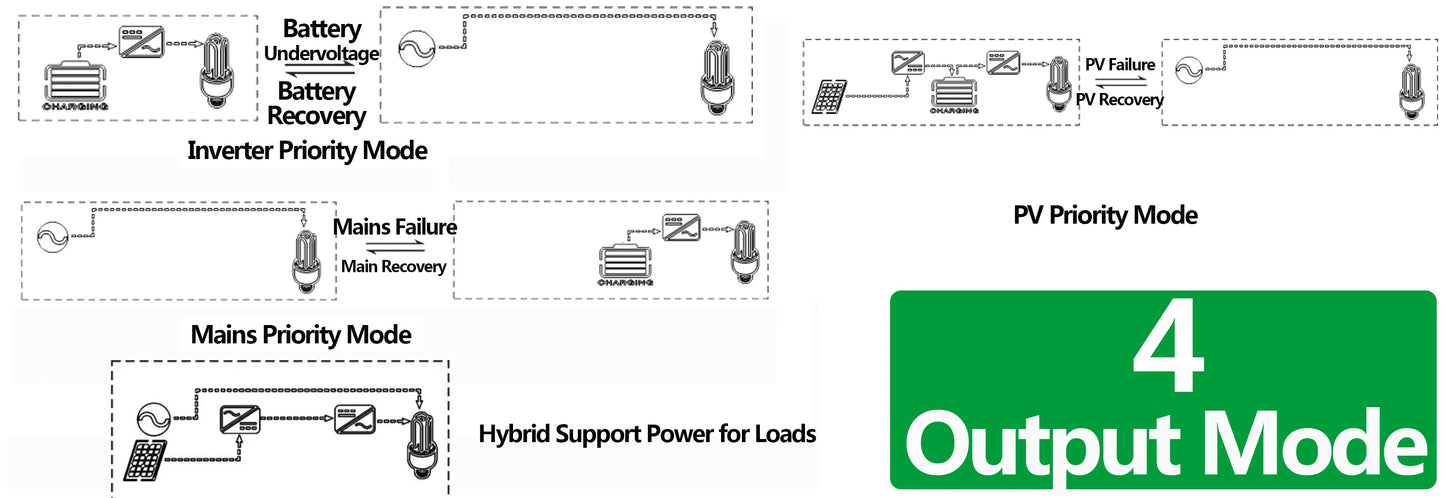

7.Two output modes: mains bypass and inverter output; uninterrupted power supply.

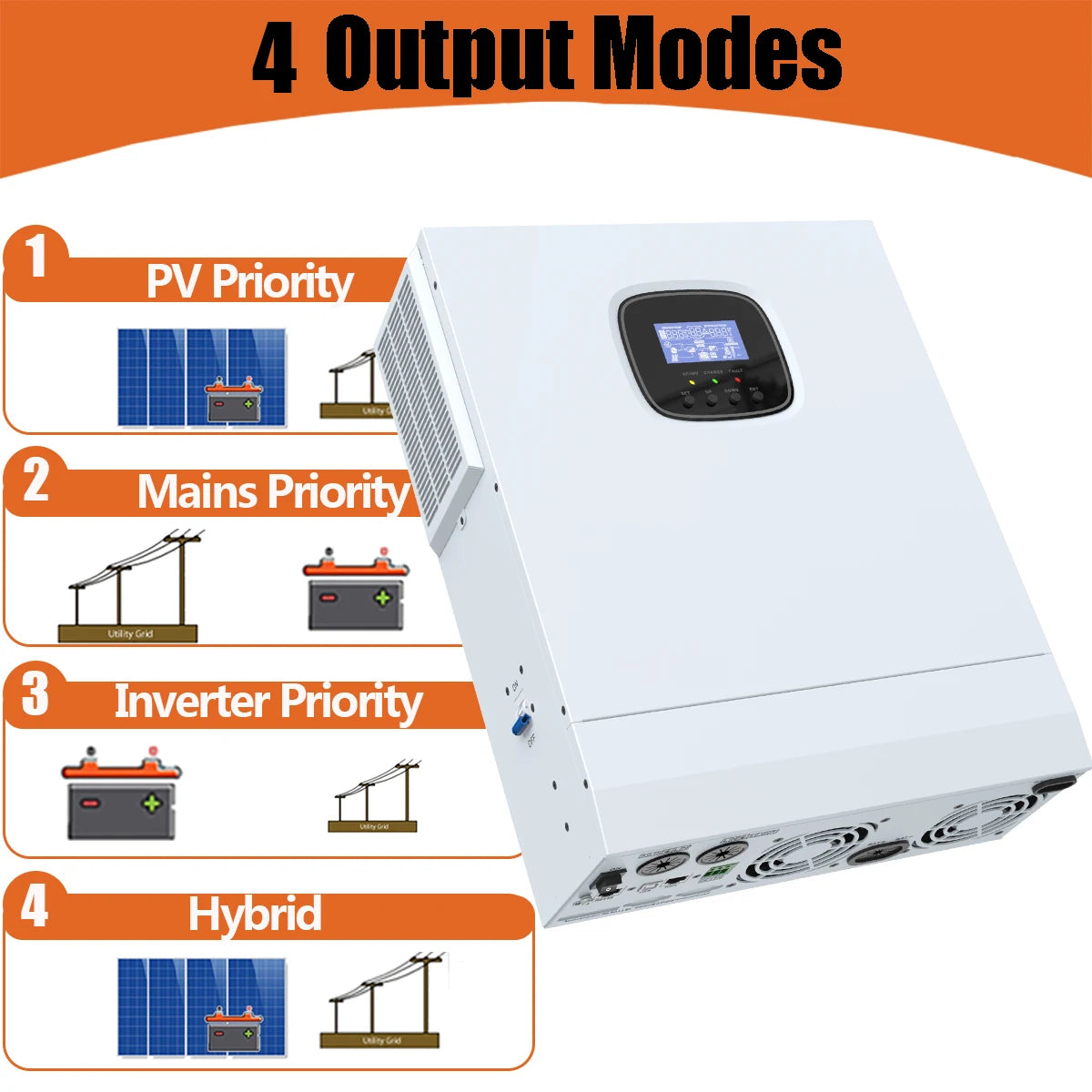

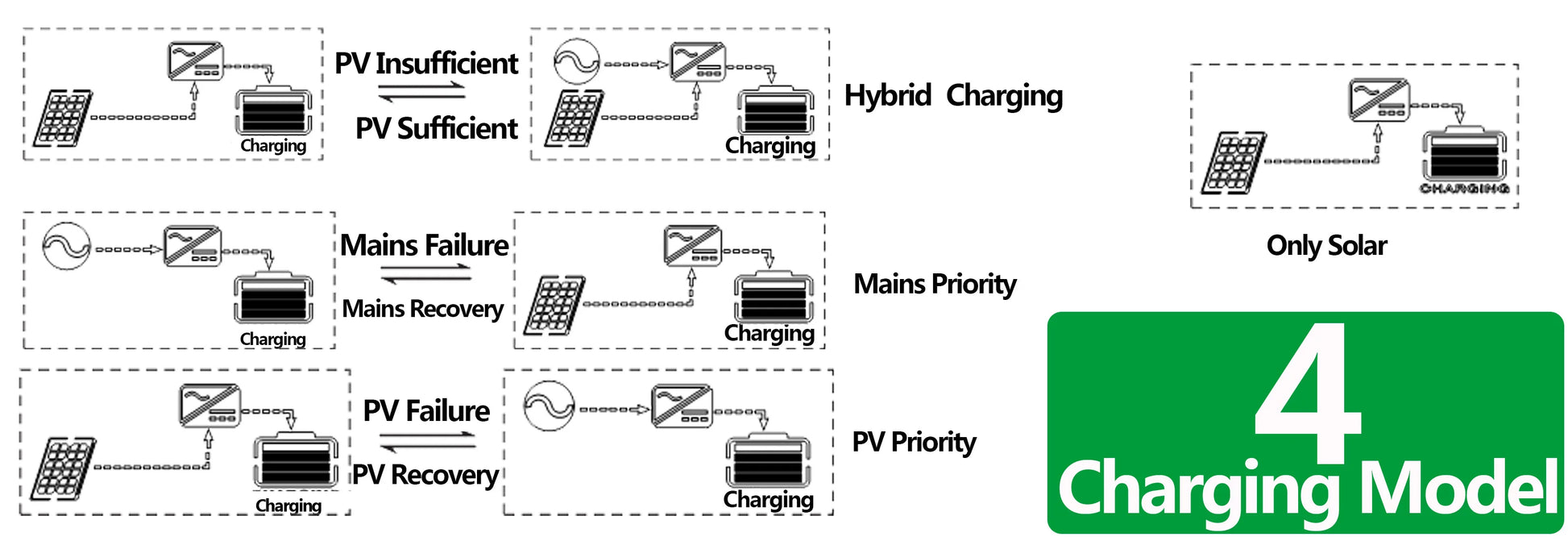

8.Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.
9.Power saving mode available to reduce no-load loss.

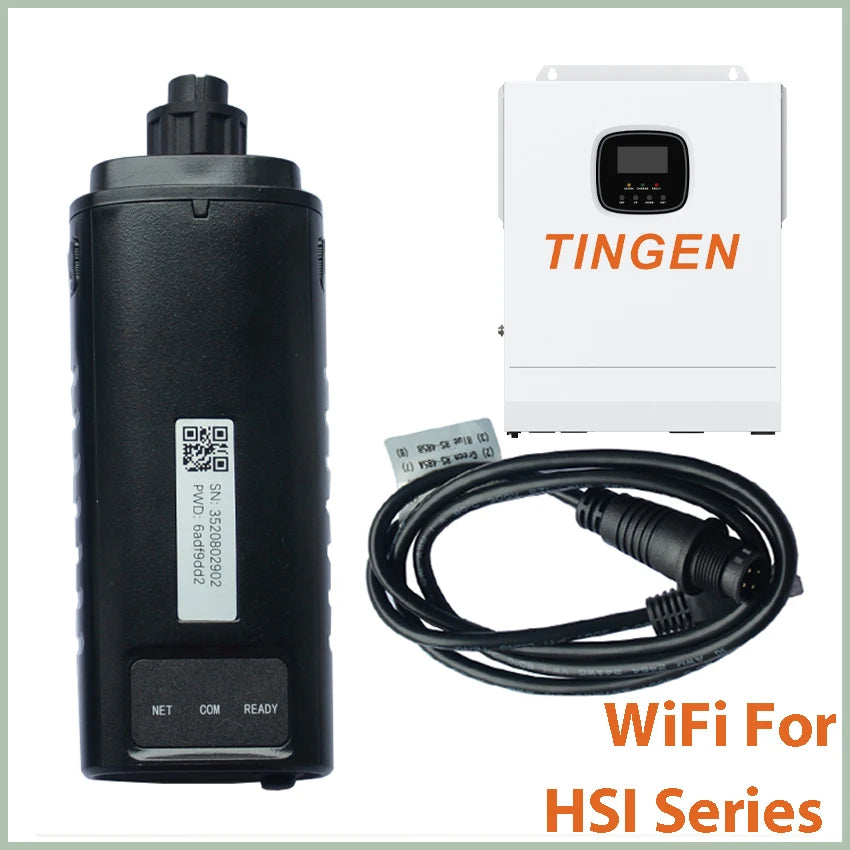

10.WIFI remote monitoring (optional)

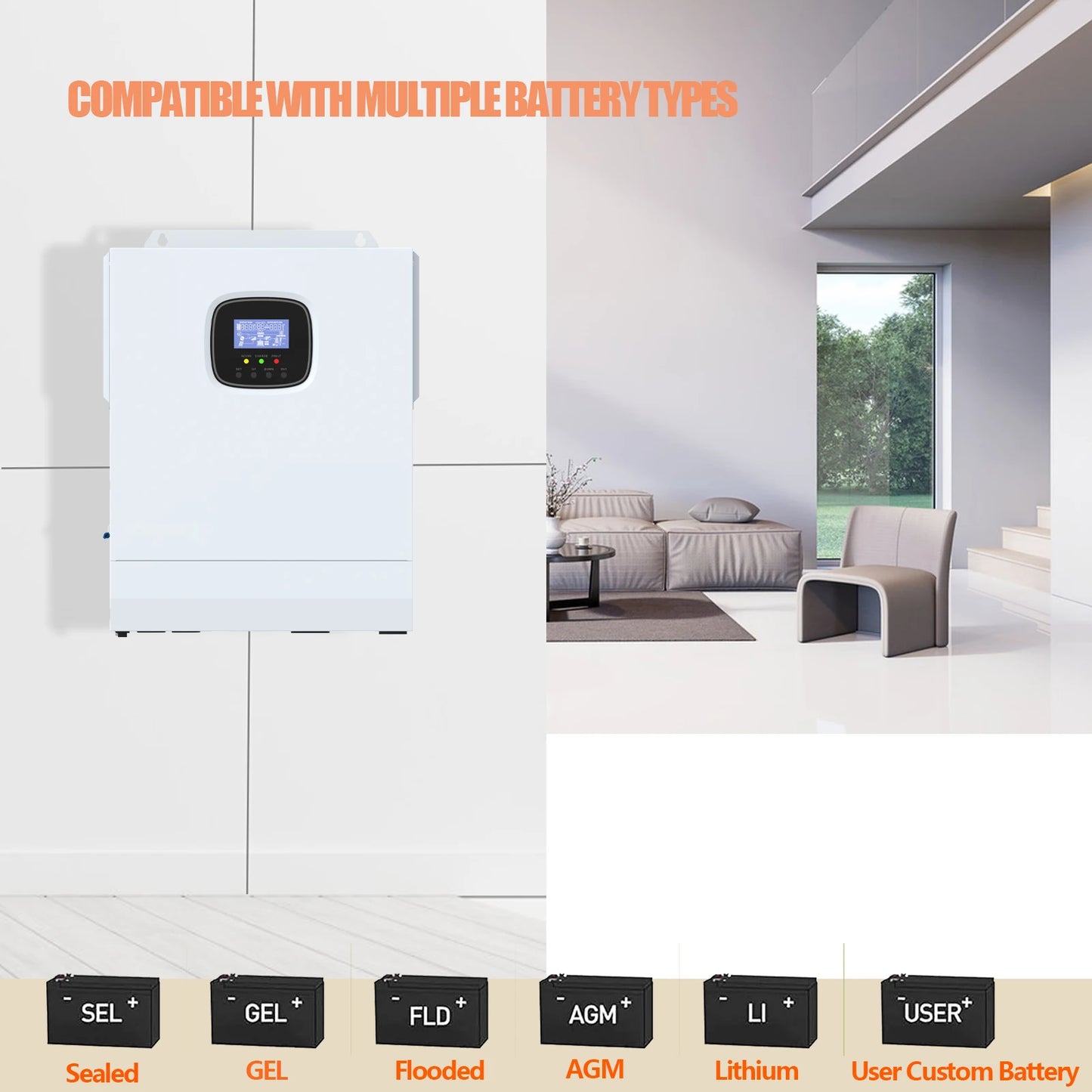

11.Lithium battery/Lead-acid battery
Parameters:
MODEL |
5000U |
CANBE |
|
INVERTEROUTPUT | |||
Rated Output Power |
5,000W |
||
Max.Peak Power |
11,000VA |
||
Rated Output Voltage |
120Vac |
√ |
|
Load Capacity of Motors |
4HP |
||
Rated AC Frequency |
50Hz/60Hz |
√ |
|
Waveform |
Pure Sine Wave |
||
Switch Time |
10ms(typical) |
||
Parallel Capacity | |||
BATTERY | |||
Battery Type |
Lead-acid /Li-ion /User defined |
√ |
|
Rated Battery Voltage |
48V |
||
Voltage Range |
40～60Vdc |
√ |
|
Max.MPPT Charging Current |
80A |
√ |
|
Max.Mains/Generator Charging Current |
40A |
√ |
|
Max.Hybrid Charging Current |
80A |
√ |
|
PV INPUT | |||
Num.of MPPT Trackers |
1 |
||
Max.PV Array Power |
6,000W |
||
Max.Input Current |
22A |
||
Max.Voltage of Open Circuit |
500Vdc |
||
MPPT Voltage Range |
120-450Vdc |
||
UTILITY/GENERATOR INPUT | |||
Input Voltage Range |
90～140Vac |
√ |
|
Frequency Range |
50/60Hz |
||
Bypass Overload Current |
63A |
||
EFFICIENCY | |||
MPPT Tracking Efhciency |
99.9% |
||
Max.Battery Inverter Efficiency |
92% |
||
GENERAL | |||
Dimensions |
426*322*126mm(1.40*1.06*0.41ft) |
||
Weight |
11.6kg(25.57Ib) |
||
Protection Degree |
IP20,indoor only |
||
Operating Temperature Range |
-10℃~55℃ |
||
Noise |
≤60dB |
||
Cooling Method |
Forced air cooling with adjustable air speed |
||
Warranty |
18 Months |
||
COMMUNICATION | |||
Embedded Interfaces |
RS485 /USB /Dry contact |
√ |
|
External Modules(Optional) |
Wi-Fi /GPRS |
√ |
|
CERTIFICATION | |||
Safety |
CE(IEC 62109-1)/CETL(UL1741 C22.2 NO.107.1)/FCC/SAA |
||
EMC |
EN61000 |
||
RoHS |
Yes |
||
Product Advantage:

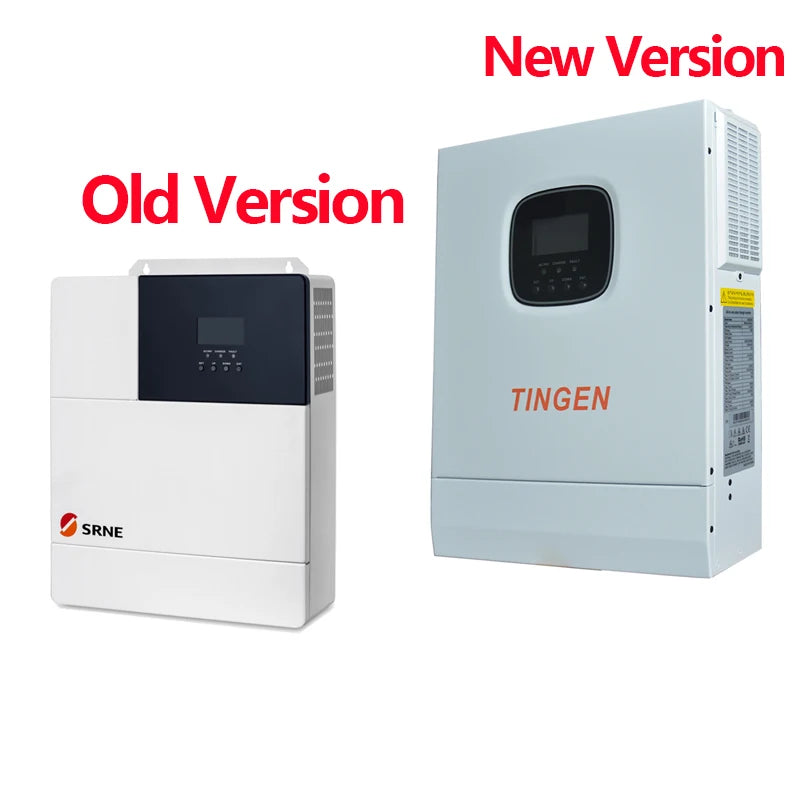

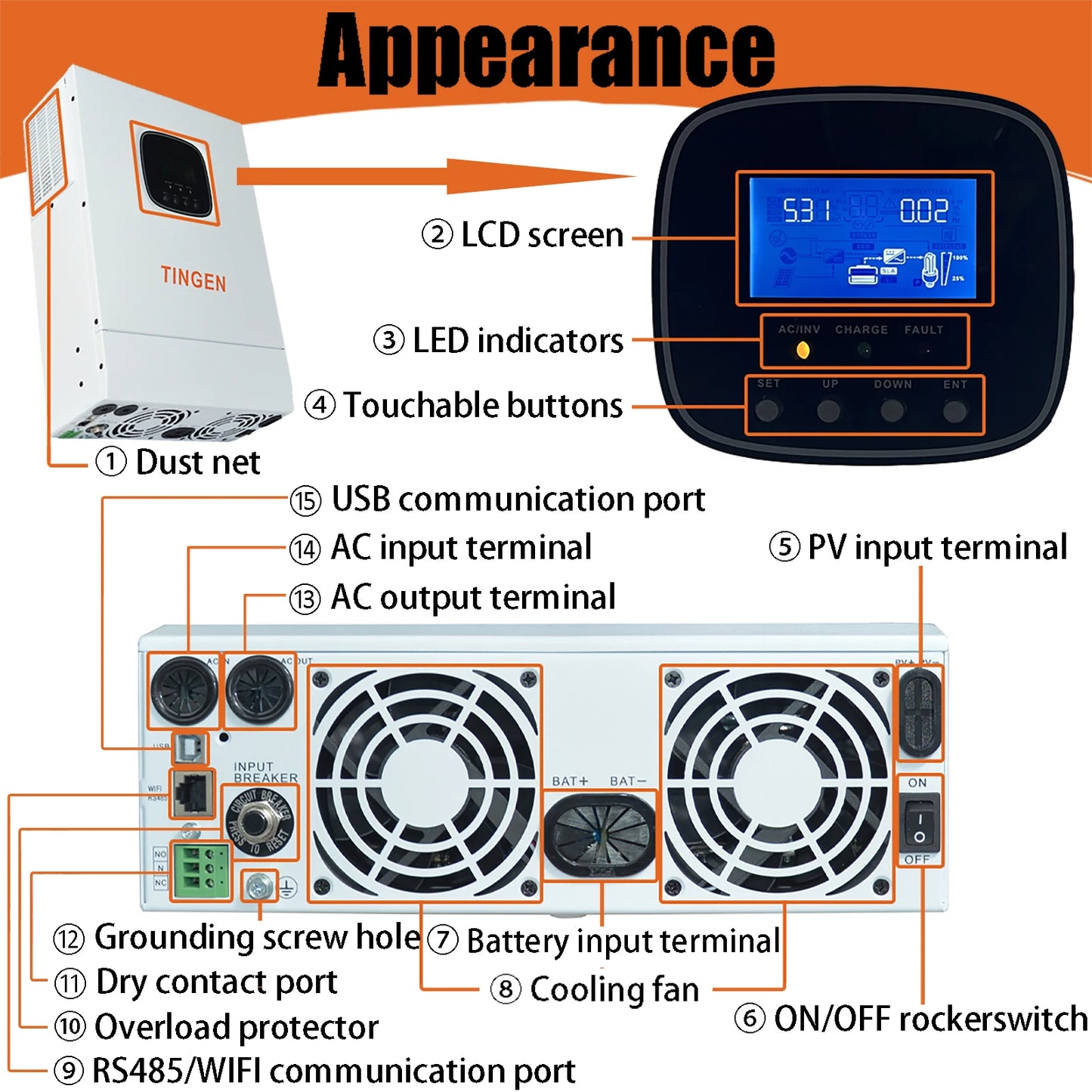

Product Details:

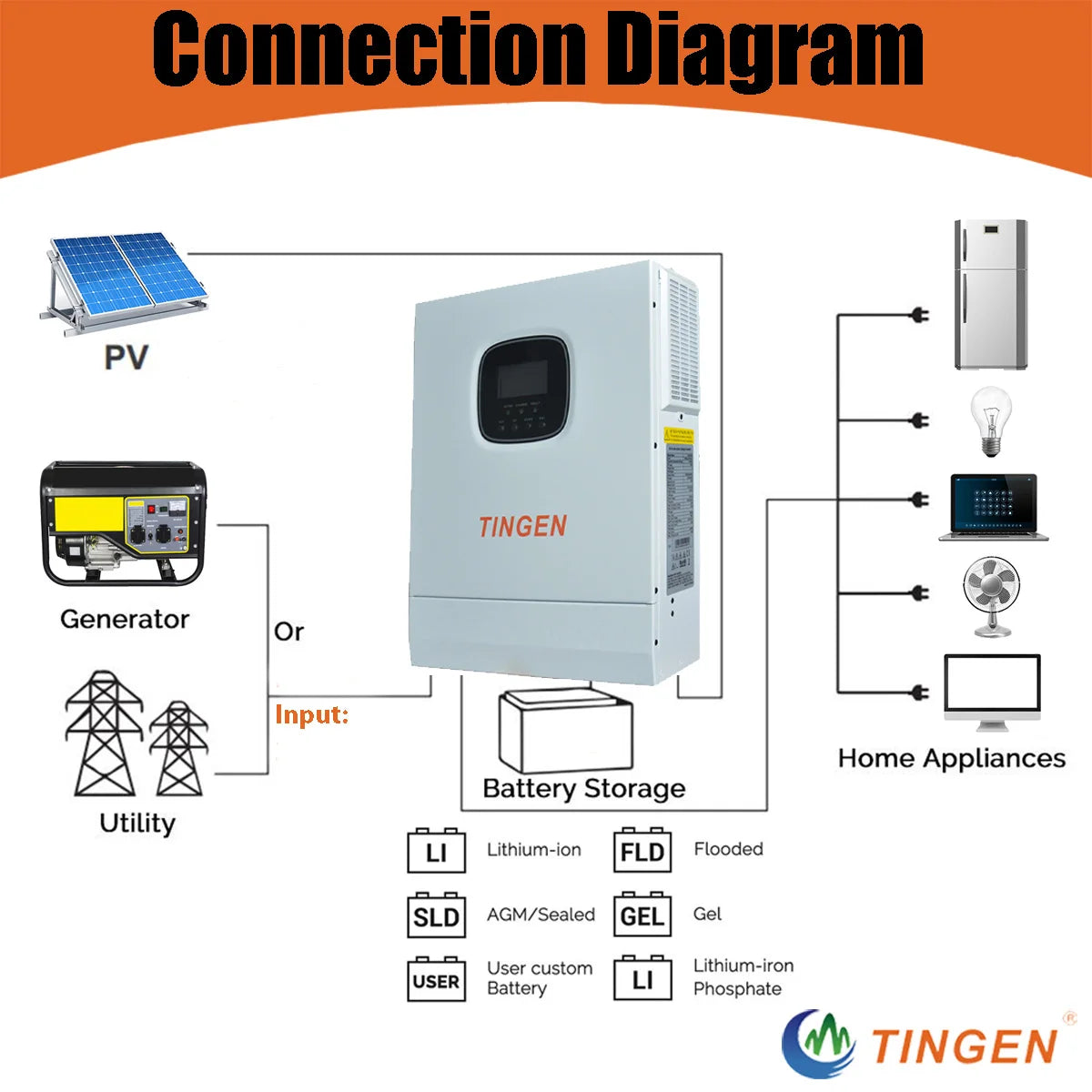

How to Connect it?

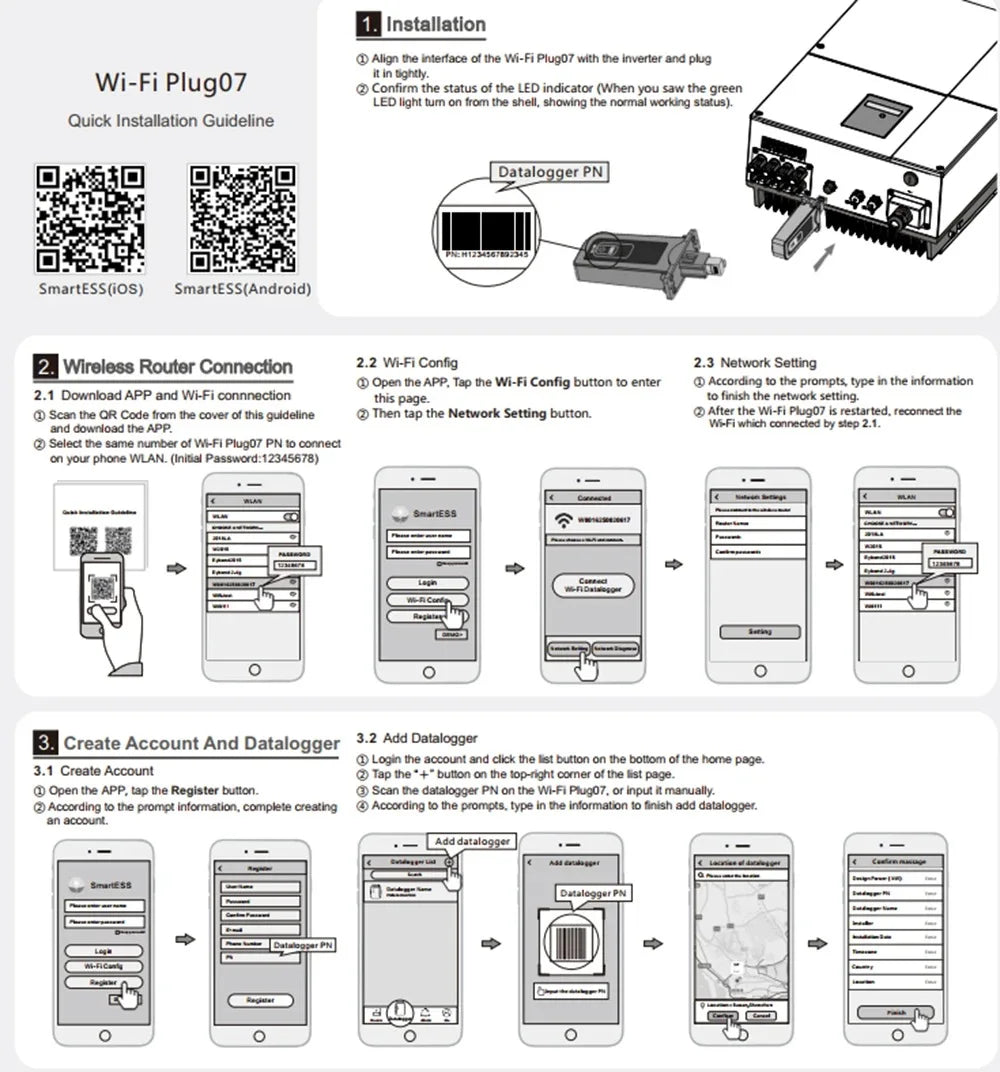

How to Connect WIFI?
