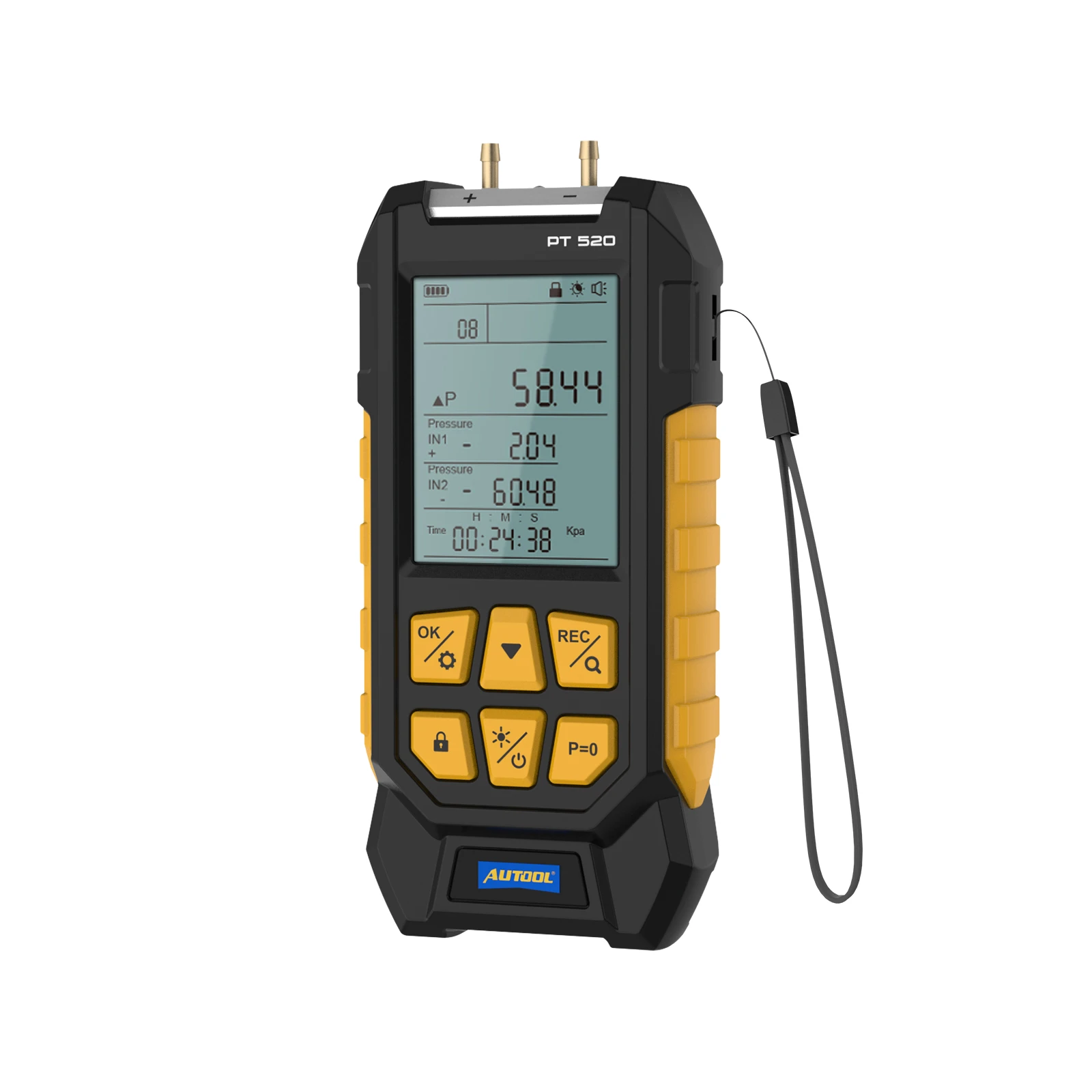

AUTOOL PT520 Digital Manometer Air Pressure Gauge -100-200 KPa 0.01 Resolution air pressure Differential Gauge

This instrument is designed with imported pressure sensors, high precision ADC and low power consumption MCU. It features professional digital pressure gauge with high precision, wide range, high resolution, large screen display and indoor temperature measurement; with a single channel it is possible to quickly measure the current detection pressure value (relative to the current atmospheric pressure), whereas the dual channel allows simultaneous detection of the pressure difference between the two detection.

Data Locking and Storage

Capable of locking data for easy on-site viewing, and storing data for later reference.

*Data Zeroing
*Data Locking
*Data Storage
*Review of 29 data sets

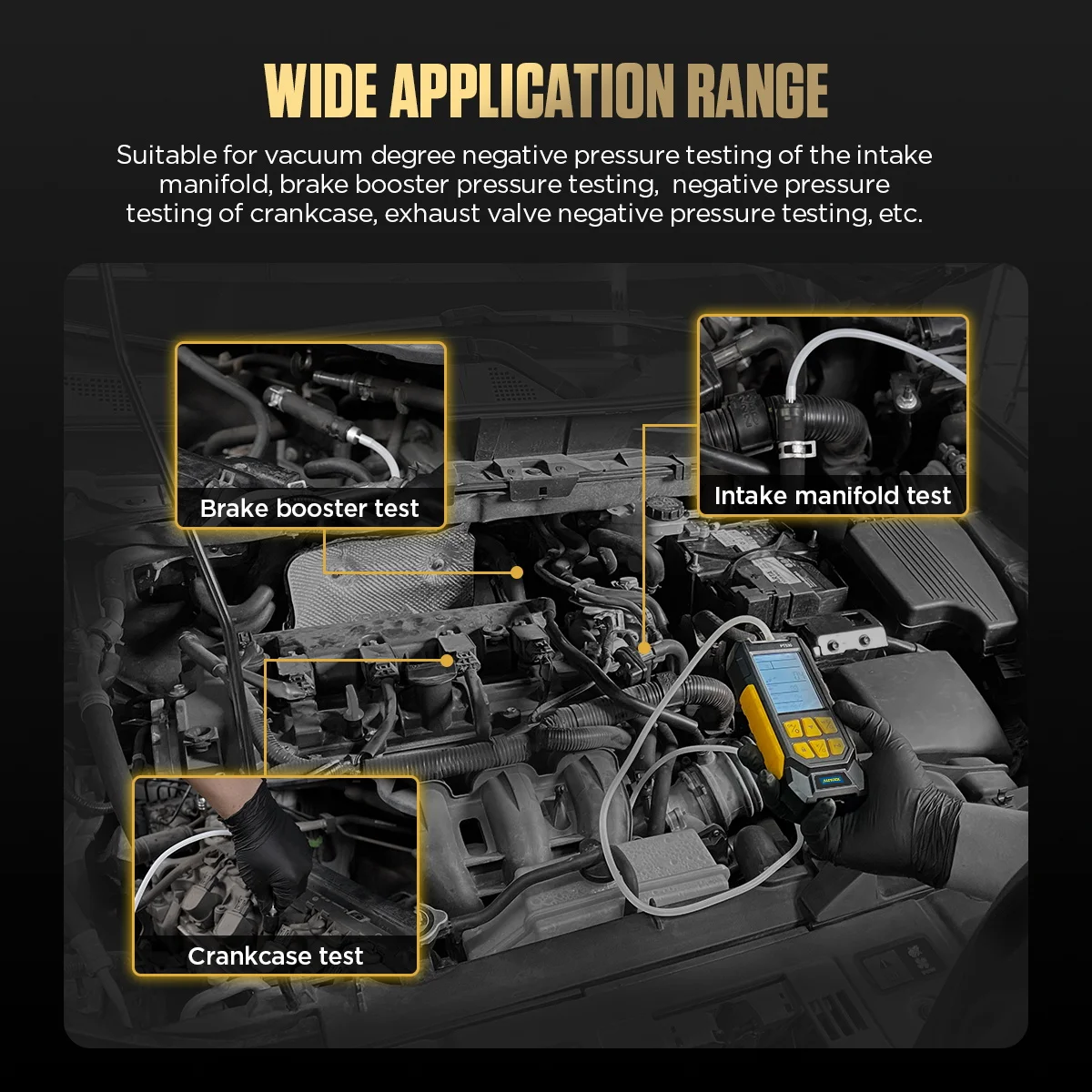

Wide Application Range:

Suitable for vacuum degree negative pressure testing of the intake manifold, brake booster pressure testing, negative pressure testing of crankcase, exhaust valve negative pressure testing, etc.

High-precision Pressure Sensor:

It offers a broad measurement range, ensuring high accuracy and responsiveness in its measurements.

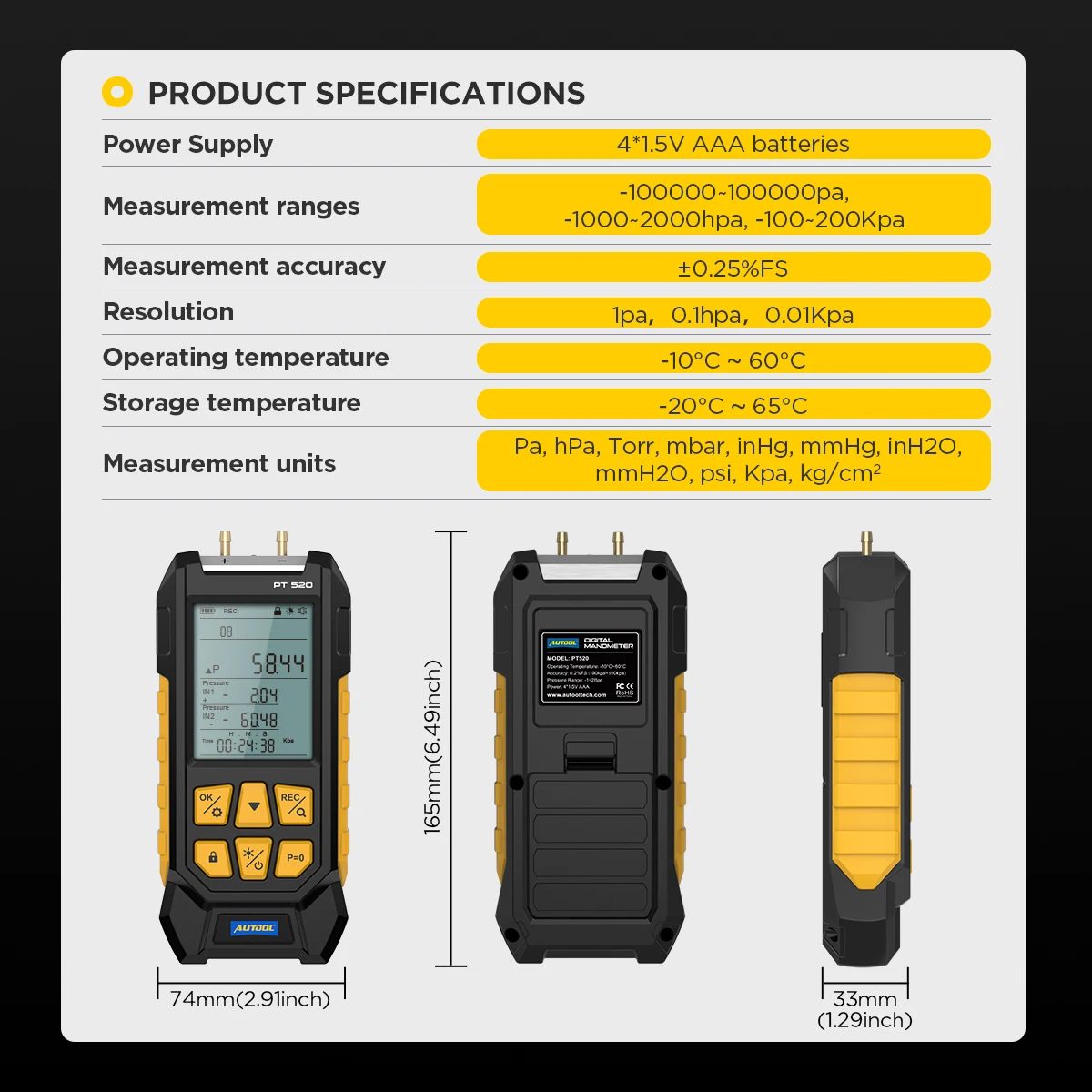

Measurement Ranges：
-100000~100000pa
-1000~2000hpa
-100~ 200Kpa
Measurement Accuracy：0.25%FS
Resolution：1pa, 0.1hpa, 0.01Kpa

Various Measurement Adapters:

Equipped with measurement adapters of different specifications, suitable for various diameter pipelines.
